Detection and Augmentation of barely textured Objects for a Car Insurance Application

Detection and pose estimation of scarcely textured objects such as cars are a difficult tasks and therefore a current object of research in computer vision.

The aim of this project is to detect the pose (position and orientation) of a car in a photograph and to augment the photograph with a perspectively correct 3D model of the same type of car. The approach will also include detection and visualization of discrepancies (i.e. damages) between the photographed car and its 3D model.

Step 1: Learning

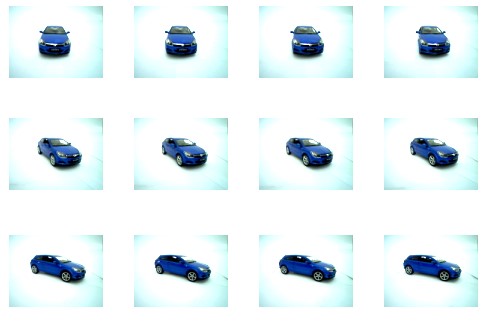

Different orientations of the object to be recognized are taught to the system (either from a 3D model, or a video, or a series of images).
Template learning
Step 2: Image Acquisition

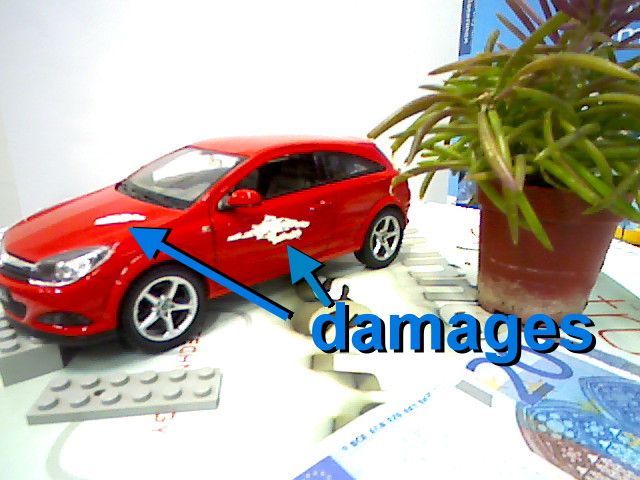

Images of the damaged car are taken on site.
On-site image acquisition
Step 3: Detection

The car is detected in the image by the software and its pose is estimated.

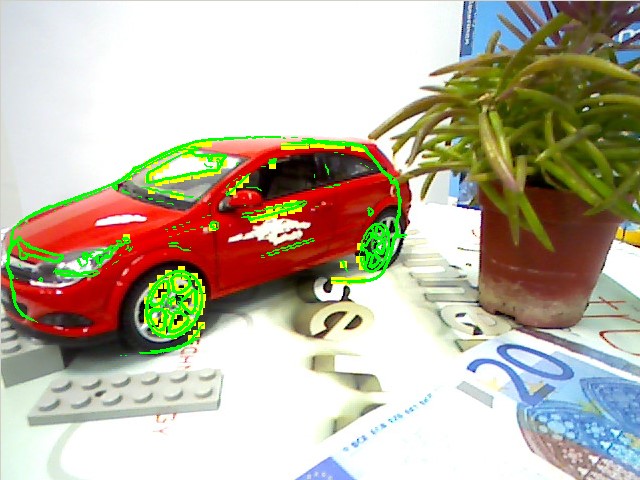

In the image on the right the car's picture has been augmented with an edge image (green) generated during the learning phase; the augmentation represents the best match of all learned poses.
On-site image acquisition
Step 4: Discrepancy Visualization

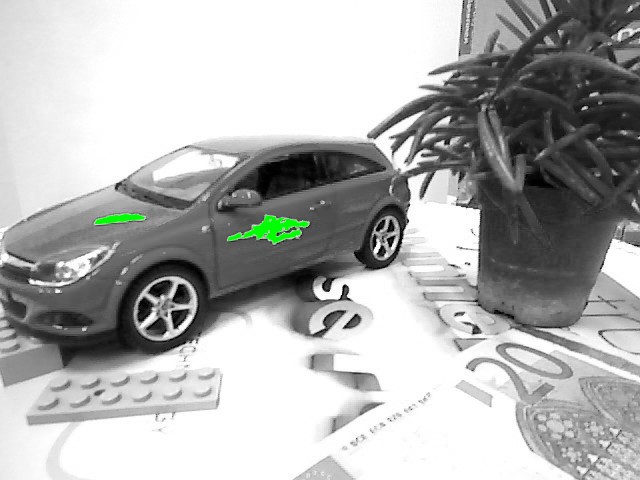

Discrepancies between the photograph and the learned model are detected and visualized.
On-site image acquisition

I Attachment sort Action Size Date Who Comment
InsuranceProject.wmv manage 1461.0 K 17 Mar 2010 - 13:52 JuergenSotke Video of Step 1-3
