Camera Augmented Mobile C-arm ( CamC )

Camera Augmented Mobile C-arm ( CamC )

Contact Person(s): Prof. Nassir Navab, Ph.D. Pascal Fallavollita and M.Sc. Severine Habert

In industrial collaboration with:
Siemens Medical SP, Erlangen Germany

Keywords: Medical Imaging, Computer-Aided Surgery, Medical Augmented Reality


Mobile C-arms are an everyday tool to acquire X-ray images in the operating room during surgery. The Camera Augmented Mobile C-arm (CamC) system augments a regular mobile C-arm by a video camera for X-ray and video image overlay. Thanks to the mirror construction and one time calibration of the device, the acquired X-ray images are co-registered with the video images without any further calibration or registration during the intervention. The CamC system can support a wide range of potential clinical applications, such as needle guidance, interlocking of intramedullary nails, and pedicle screw placement.


Figure 1: Mockup of the CamC System.

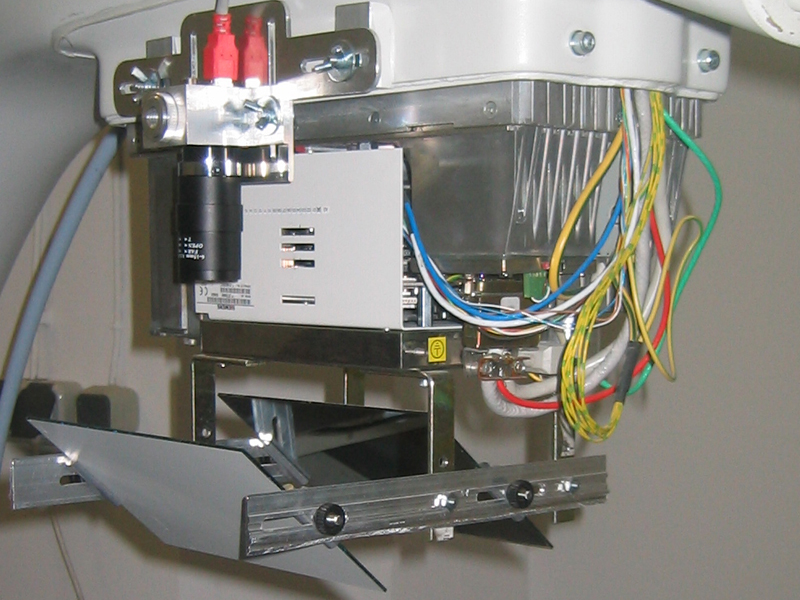

Figure 2: The attached camera and the double mirror construction.

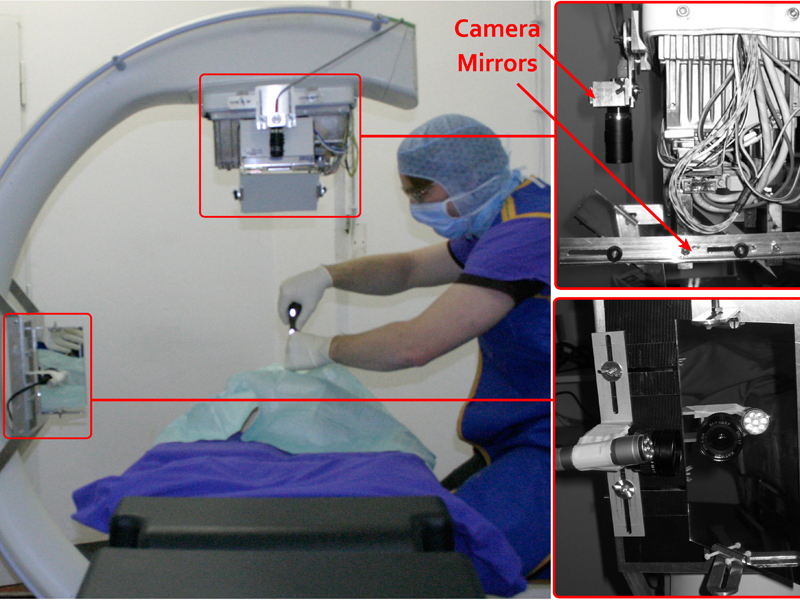

Figure 3: Extended system setup with two attached cameras.

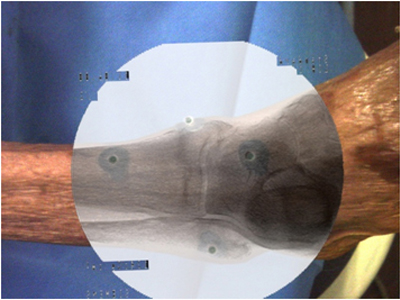

Figure 4: Visualization shows the overlay of the x-ray onto a foot.

Xray Visualization on 3D surface reconstruction

Panoramic X-ray stitching
