Within the interdisciplinary project "Collaborative Design Platform" (http://cdp.ai.ar.tum.de/), a large-scale multitouch table was developed to aid urban planning and prototyping. The table interacts with the user over a multitouch surface, and can also scan objects positioned on top of it in 2.5 dimensions. In order to enhance its presentation cababilities, an additional display will be added, which offers a 3D augmented virtuality perspective on the workspace, which reflects both the physical and the virtual aspect of the scene. The view can be controlled using a special 3D mouse. In addition, the user can sketch and draw directly on the virtual world presented on the new display.
ProjectForm | |
---|---|
Title: | 3D augmented virtuality sketching |
Abstract: | Within the interdisciplinary project "Collaborative Design Platform" http://cdp.ai.ar.tum.de/ a large-scale multitouch table was developed to aid urban planning and prototyping. The table interacts with the user over a multitouch surface, and can also scan objects positioned on top of it in 2.5 dimensions. In order to enhance its presentation cababilities, an additional display will be added, which offers a 3D augmented virtuality perspective on the workspace, which reflects both the physical and the virtual aspect of the scene. The view can be controlled using a special 3D mouse. In addition, the user can sketch and draw directly on the virtual world presented on the new display. |
Student: | Violin Yanev |
Director: | Gudrun Klinker |
Supervisor: | Eva Artinger |
Type: | Master Thesis |
Area: | Registration / Visualization |
Status: | finished |
Start: | |
Finish: | |
Thesis (optional): | |

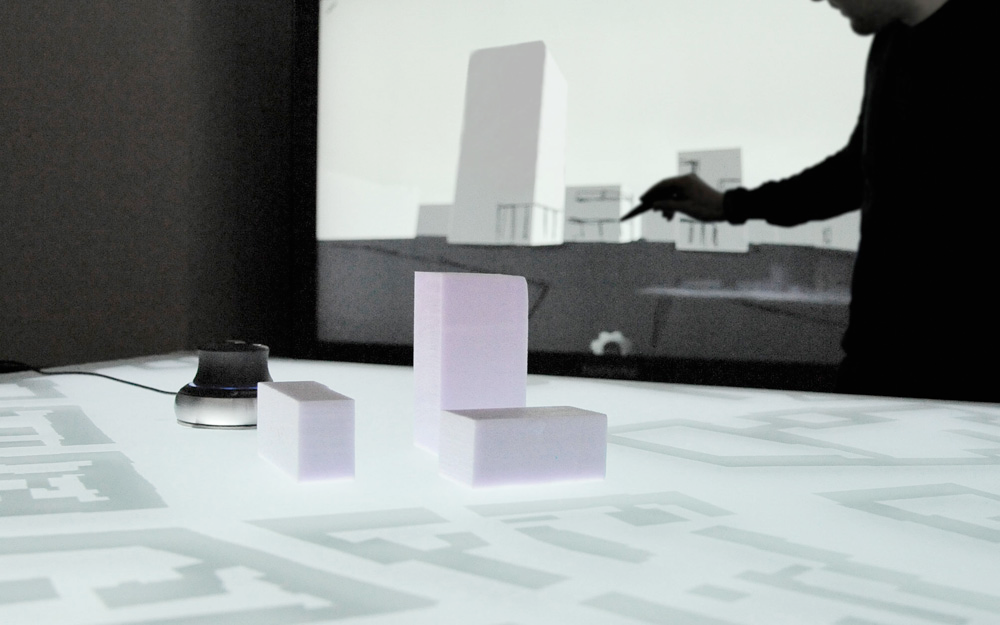

Picture: |
