ARAV Augmented Reality Aided Vertebroplasty

ARAV Augmented Reality Aided Vertebroplasty

In medical collaboration with:
Trauma Surgery Department, Klinikum Innenstadt, LMU, Munich, Germany

Scientific Director: Nassir Navab

Contact Person(s): Christoph Bichlmeier

Keywords: Medical Augmented Reality, Past Projects

Abstract

In today’s ORs more and more operations are performed employing minimally invasive procedures. Surgical instruments are inserted through a tiny cut on the patient’s skin, the port to the inside of the patient. In some cases endoscope cameras record video images of the operation site that are presented on a monitor. As a consequence of this technique, the surgeon’s field of view is divided into several work spaces, the monitor, the patient and information of medical imaging data presented on a third station. The missing direct view on the workspace complicates intuitive control of surgical tools. In contrast to open surgery the physician has to collect information from several fields of view at the same time and fuse information mentally to create a complete model of his working space, the operation site. The minimally invasive intervention vertebroplasty was determined as a suitable medical application to bring an Head Mounted Display (HMD) into the OR for augmentation of surgical instruments and medical imaging data. In-situ visualization with an HMD presents all available imaging data and navigational information in one field of view. The objective of vertebroplasty is the insertion of cement into weak and brittle vertebrae through a trocar for stabilization. In this case the view on the inside of the patient is not provided by an endoscope camera. However, since the operation is performed under a CT scanner, imaging data is permanently updated to check position of the trocar and amount of inserted cement. Imaging data is presented on a monitor and has to be mapped mentally by the surgeon on the real operation site.

Pictures

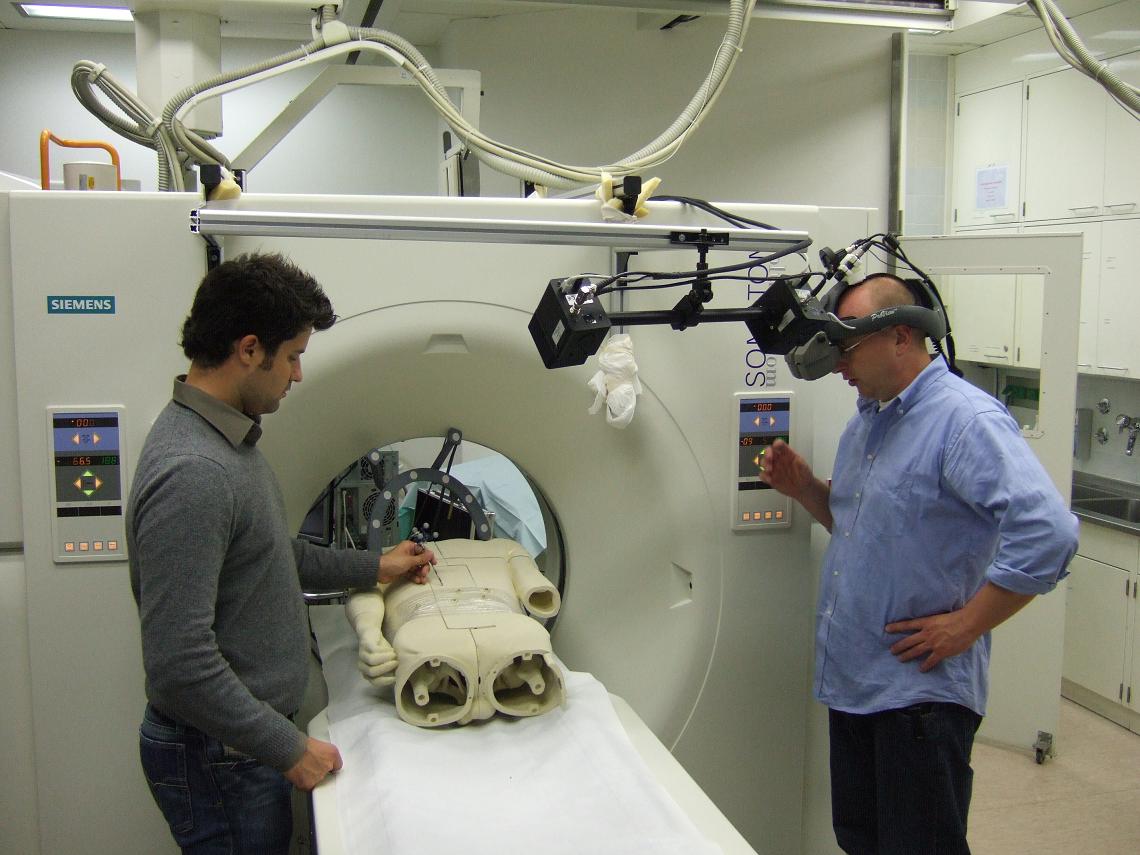

Figure 1: For the second experiment in the operating room, we used our new phantom printed from the Visible Korean Human (VKH) dataset.
